V-8 Conversion Manual for Datsun Z Cars
Shows how to install a small block Chevrolet V-8 into 1970-1978 Datsun Z cars

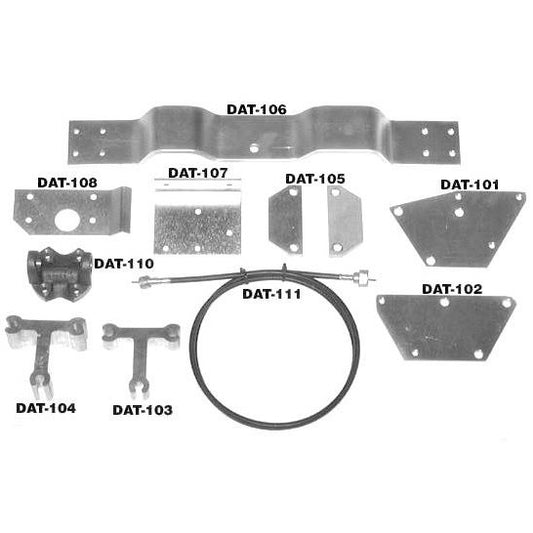

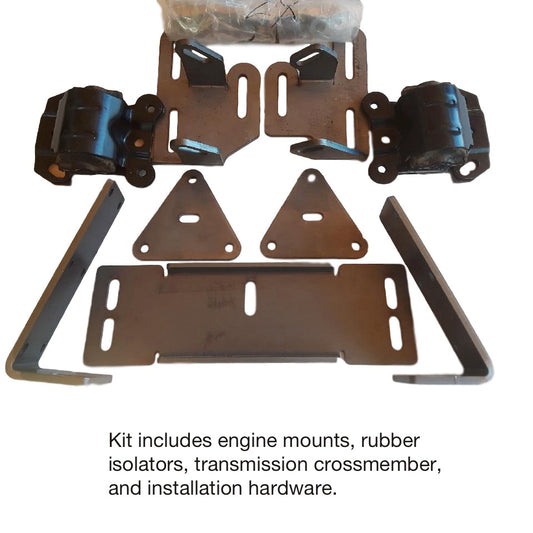

Covers everything from the drawings of the motor mounts
to the detailed instructions on calibrating the tachometer.

Also includes a chapter on suspension modifications to improve the handling and braking of the V-8 Z.

—>Now! Download entire Cooling System chapter (Chapter 12)!
 (Adobe Acrobat .pdf — if you need the free Acrobat Reader, go here)

Over 140 pages.

Datsun V-8

Datsun Z V8 Conversion Manual

• Special package: When purchasing V8 conversion manual for    Jaguar, add the Chevy TPI & TBI Engine Swapping Manual for    only $19.95 more.

Add Chevy TPI/TBI Book

Excerpt from the Introduction

The Datsun Z V-8 conversion is a popular swap. The Chevrolet small block fits in the engine compartment so well, one wonders if Datsun had dreams of installing the Chevrolet V-8.

Some Datsun Z owners very much disapprove of putting a V-8 into a Z car, but most have never even driven a V-8 Z. They feel that a V-8 conversion is cheating, an unfair way to increase horsepower. They may even make claims that the Z engine can be modified to produce as much power as a Chevrolet V-8. They are right, but only if the Z engine is so modified that it is virtually undriveable on the street, and they are comparing it to a stock, low performance V-8.

Most people who modify their Z motors end up installing a larger radiator, exhaust system, and lower gear ratios in the differential. They then add a set of triple Weber (or Mikuni) carburetors, headers, a high performance cam, and a ported cylinder head. Pretty soon, they have spent more than the cost of a V-8 conversion. And... the V-8 car will still be faster, quieter, more driveable, and it can be smog legal in the state of California (other states will soon have smog laws similar to California).

Forget about turbocharging or supercharging the Datsun 6-cylinder engine. Not only do the aftermarket turbochargers and superchargers for the Z cars add at least 50 lbs to the front of the car, they rarely work as advertised—poor drivability and durability are the norm. With the boost levels required to match the power of the V-8, you can forget about any kind of reliability. If you decide to add an intercooler, add another 30 lbs. The V-8 swap can actually be less than the cost of the turbocharger or supercharger kits.

The typical weight gain from the V-8 conversion (about 125 lbs.) is less weight than the average passenger, barely noticeable in a properly converted car, and the performance of a stock Chevrolet V-8 in a Z car is amazing. A 260Z with a 1977 350 V-8 rated at 180 horsepower and a late model automatic overdrive transmission will do 0 to 60 mph in under seven seconds and get over 22 mpg on the highway. 240Z's are even quicker! A car with stickshift will take a bit over seven seconds to reach 60 mph, because of the time it takes to shift gears and because of the difficulty in getting a good start without spinning the tires. Automatic transmissions are quicker in drag racing, but the stickshift cars perform better in road racing.

The 1970 V-8 Z shown was converted in less than two weeks using the instructions in this manual. It has a 1971 350 V-8 with a gross horsepower rating of 270 horsepower (1972 and newer engines are rated at "net" horsepower, with all accessories, emissions equipment and exhaust installed. The "net" rating of the 1971 engine is about 200 horsepower).

California no longer reguires smog inspections on 1973 and older cars, so any V-8 can be installed in 1970–1973 240 Z's without having to go through an emissions test.

You can see below how simple the V-8 installation appears. It does not look cluttered or complicated, even though the engine displaces 204 cubic inches more than the original motor. Nothing is dangling loose, everything is secure and orderly. It looks factory installed.

Datsun and V-8 Engine

Don't let the simple, plain appearance fool you. Many hours of experimenting and testing have gone into making the conversion look this way. The engine is set back so that the distributor is about a half inch from the firewall, and it sits low enough for a stock height air cleaner to be used under the stock hood. The hoses going into the fenderwell are for the charcoal canister, which was relocated to the wheelwell. The cooling system uses a Chevrolet radiator support, fan shroud, fan blade, hoses, and a Chevrolet radiator.

The car gained 140 lbs from the V-8 conversion; 100 lbs on the front, and 40 lbs on the rear.

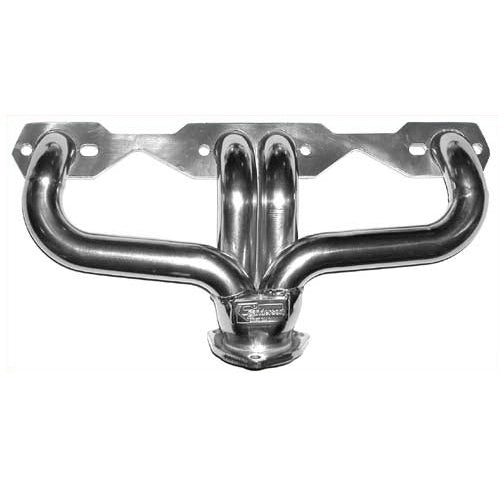

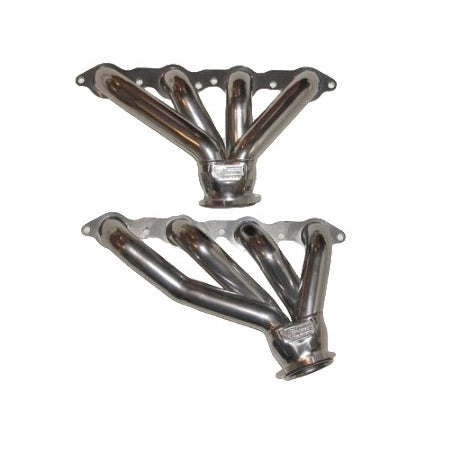

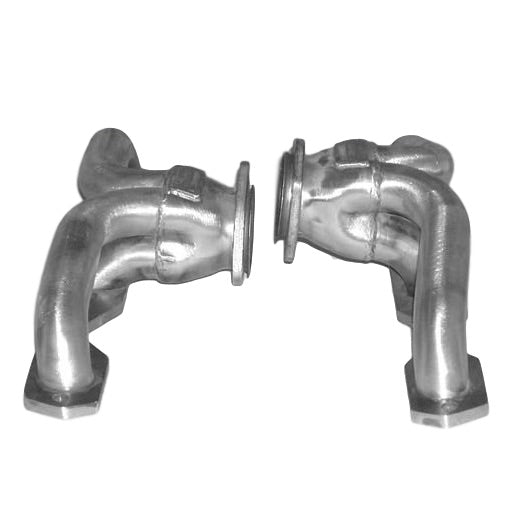

If you wanted to reduce the weight gain from the V-8 conversion, an aluminum intake manifold and headers would reduce the weight on the front wheels by about 30 lbs, as well as increase power. An aluminum water pump would drop another 6 lbs. A gear-reduction starter would save 9 lbs. A lightweight flywheel would save 9 lbs. Aluminum heads would save about 40 lbs. An aluminum radiator could save another 10 lbs. The alternator could be replaced with a CS series used on the 1987 TPI Camaro and save another 2 lbs. The headlights could be replaced with plastic headlights now available at auto parts stores, they save about 2 lbs per pair. Relocating the battery to the rear would transfer an additional 35 lbs from the front of the car. If you did all of the above, the car would weigh nearly the same as a stock Z car.

(For parts, see our order form and price list.)
