4L60-005 Reluctor Ring Assembly for 4L60-E, 4L60E TailHousing

Reluctor Ring Assembly for 4L60-E TailHousing, 4L60E

Stealth Conversions
4L60-005 Reluctor Ring Assembly for 4L60-E

Return to PARTS PRICE LIST AND ORDER FORM
(Please note: If your browser can't access secure servers, please return to our home page and use the non-secure links to these forms. You will still be able to order by phone, fax, or mail.)

4L60-005 Reluctor Ring Assembly for 4L60-E TailHousing, 4L60E

Stealth Conversions Part #4L60-005

Reluctor Ring Sleeve Assembly #4L60-005

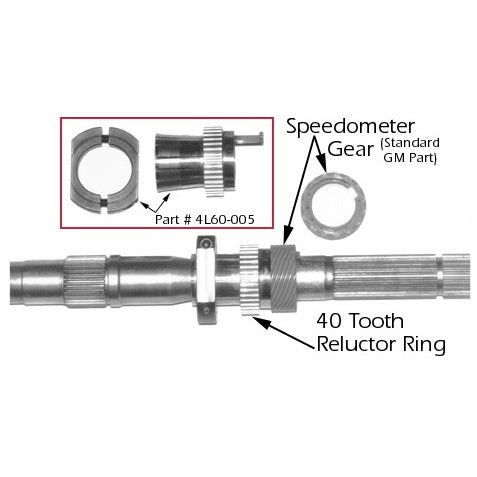

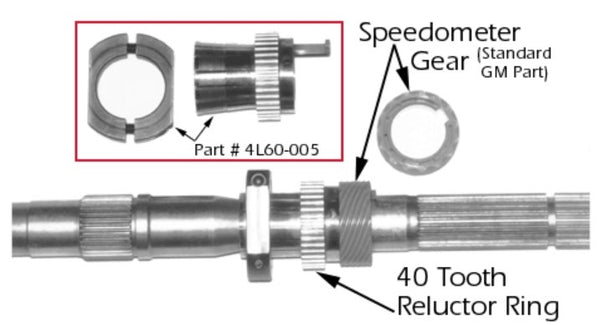

This shows the reluctor ring sleeve assembly (Stealth Conversions Part #4L60-005), both on and off the output shaft. It can be installed without removing the output shaft from the transmission, and it does not require drilling a hole into the transmission case. This unit holds the speedometer drive gear onto the output shaft, and it has a reluctor ring that is positioned about 7/8" forward of the original location, which requires a tailhousing modified to accept the relocated sensor (see associated parts catalog page). This assembly simply slides onto the output shaft and the collar clamp securely holds the unit in place. Alignment holes (not visible in the photo) ease the positioning, and also balance the assembly.

The collar clamp has the outside portion machined flat to allow proper oil spray to the rear bushing in the tailhousing.

PLEASE NOTE: Our manual goes into greater detail on this topic! We regret that we are unable to enter into telephone or e-mail discussions concerning it, as we just cannot spare the time!
